Marathon Swing Hanger

• Maximum stated capacity: 125 kg per hanger
• Dimensions: 75 × 70 × 50 mm
• Material: Galvanised steel
• Structural timber pilot hole: Ø8 mm, depth 100–105 mm
• Solid concrete drill hole: Ø10 mm, depth 70–80 mm
• Manufacturer testing: DIN EN 71 and DIN EN 1176 series, as stated by the Marathon manufacturer
• Included: 1 × Marathon Swing Hanger with fixing components applicable to the selected installation configuration

Important: The 125 kg capacity applies to the Marathon Swing Hanger component. It does not establish or certify the load capacity of the ceiling, beam, concrete structure or other supporting substrate.

The Marathon Swing Hanger must be attached to a suitable load-bearing structural element capable of supporting the equipment and the dynamic forces generated during use.

The purchaser and installer are responsible for identifying the supporting structure and confirming its construction, condition and suitability before installation. Do not fix into plasterboard, ceiling linings, decorative finishes or other non-structural materials.

Select the hanger configuration that corresponds with the confirmed substrate:

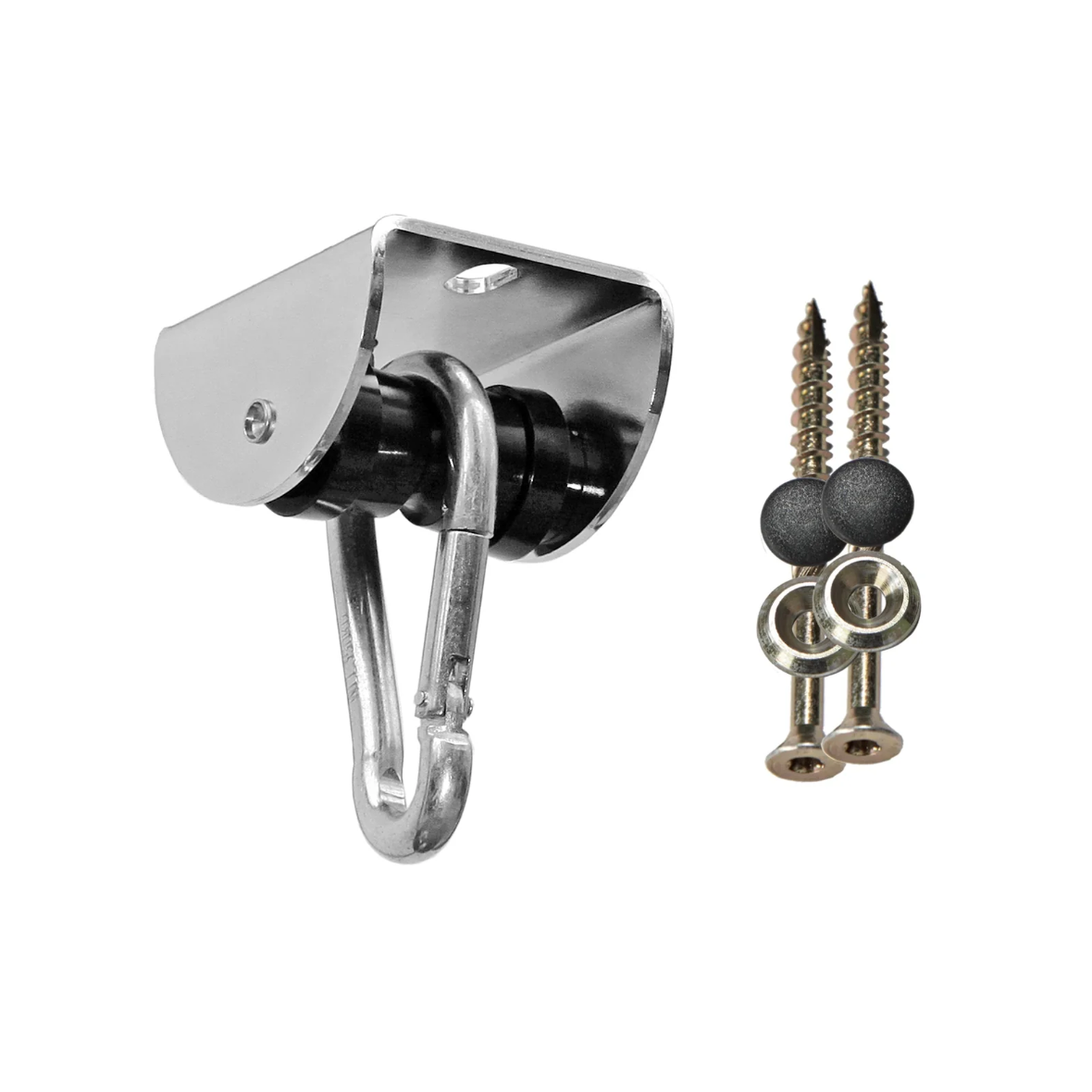

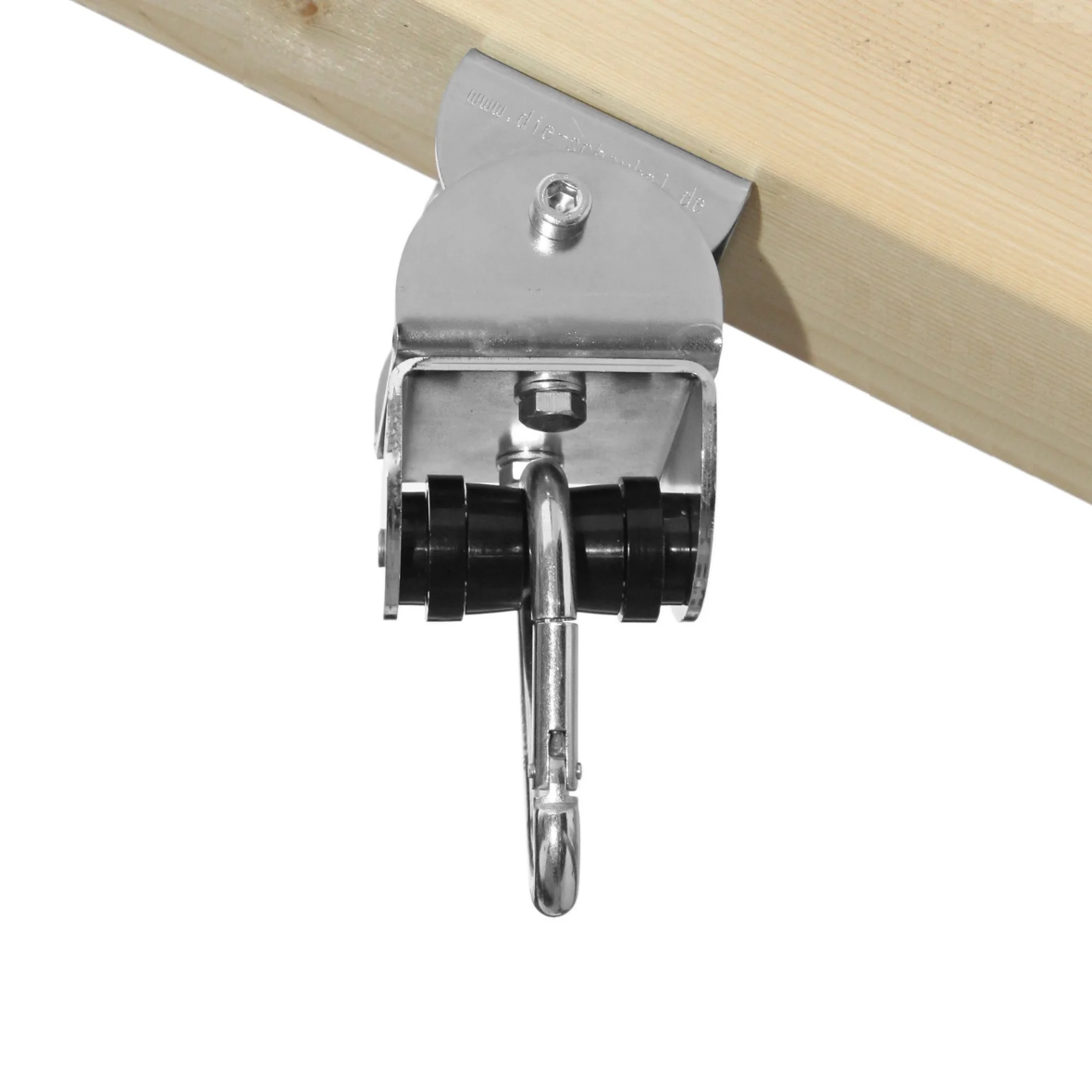

• Structural Timber: for installation into a suitable load-bearing timber beam or structural timber member.

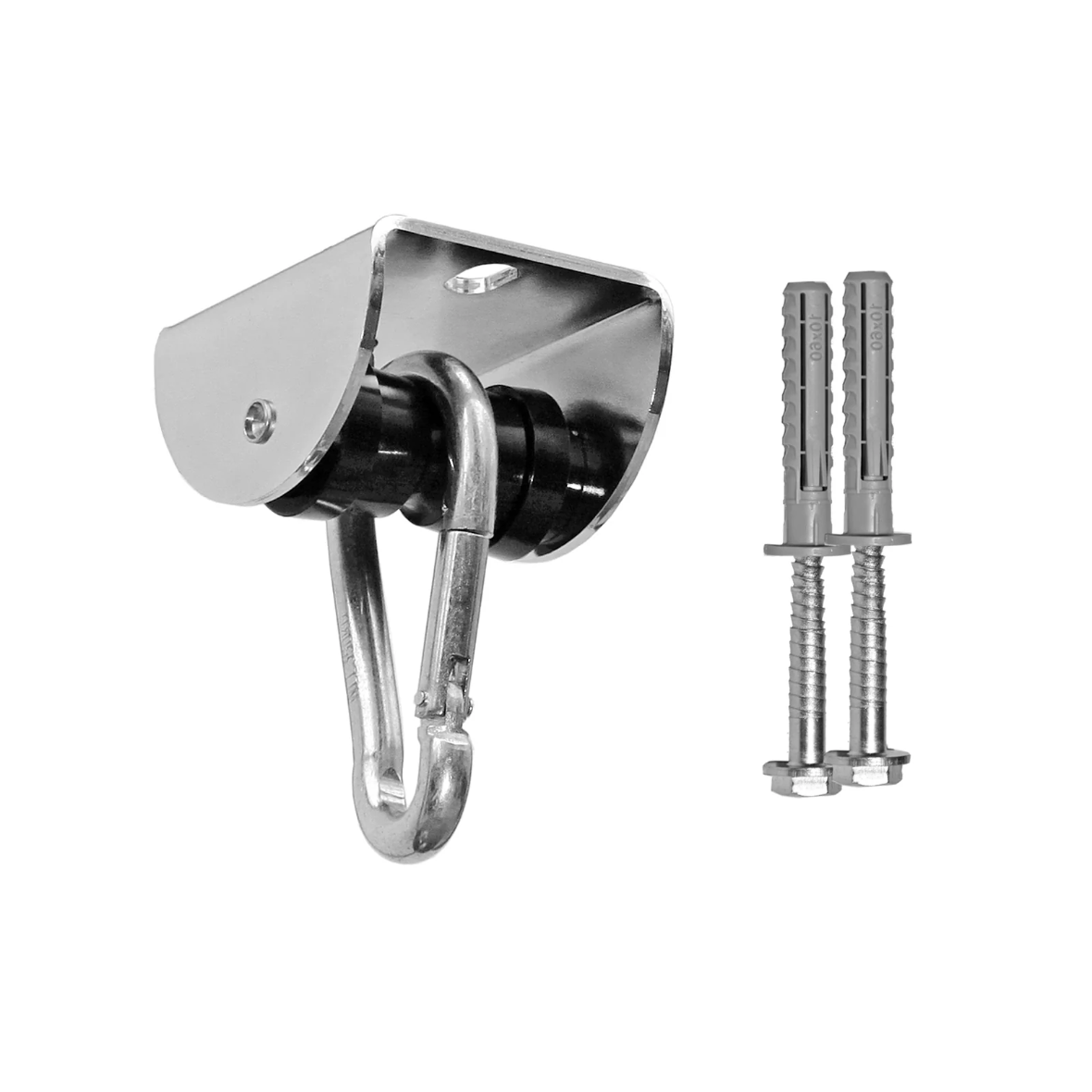

• Solid Concrete: for suitable solid concrete only. Do not assume concrete block, hollow masonry, aerated concrete or other masonry construction is equivalent.
• Angled Beam: installation must be appropriate for the construction and condition of the supporting beam and follow the manufacturer's applicable fixing instructions.

If the supporting structure, substrate or appropriate fixing method cannot be confidently identified, installation must not proceed until it has been assessed by an appropriately qualified builder, installer or structural professional.

The stated maximum capacity of 125 kg applies to the hanger component only and does not confirm the capacity of the building structure or completed installation.

Installation must follow the current manufacturer's instructions supplied with the product. Check all fixings and the completed installation before first use and inspect regularly thereafter.

All products come with a 6-month warranty covering manufacturing faults.

 We will request photos of any issues and determine the appropriate remedy (e.g., replacement).

 This warranty does not cover general wear and tear, improper use, or damage caused during self-installation.

See our Warranty Policy for more.

We are currently shipping to New Zealand and Australia. This product is made to order. Ships in 2 to 4 weeks. Ships directly from the manufacturer. Refer to shipping policy.
