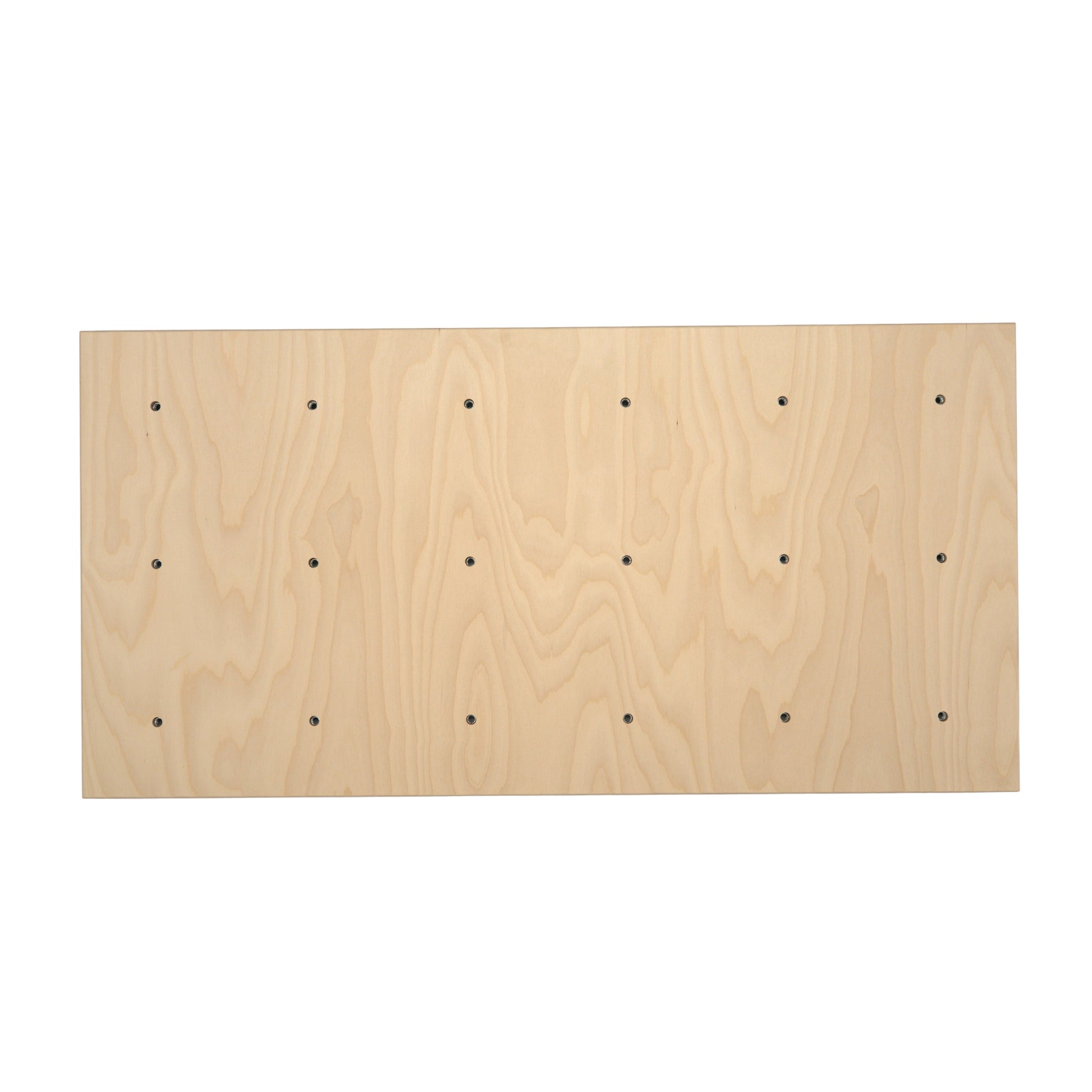

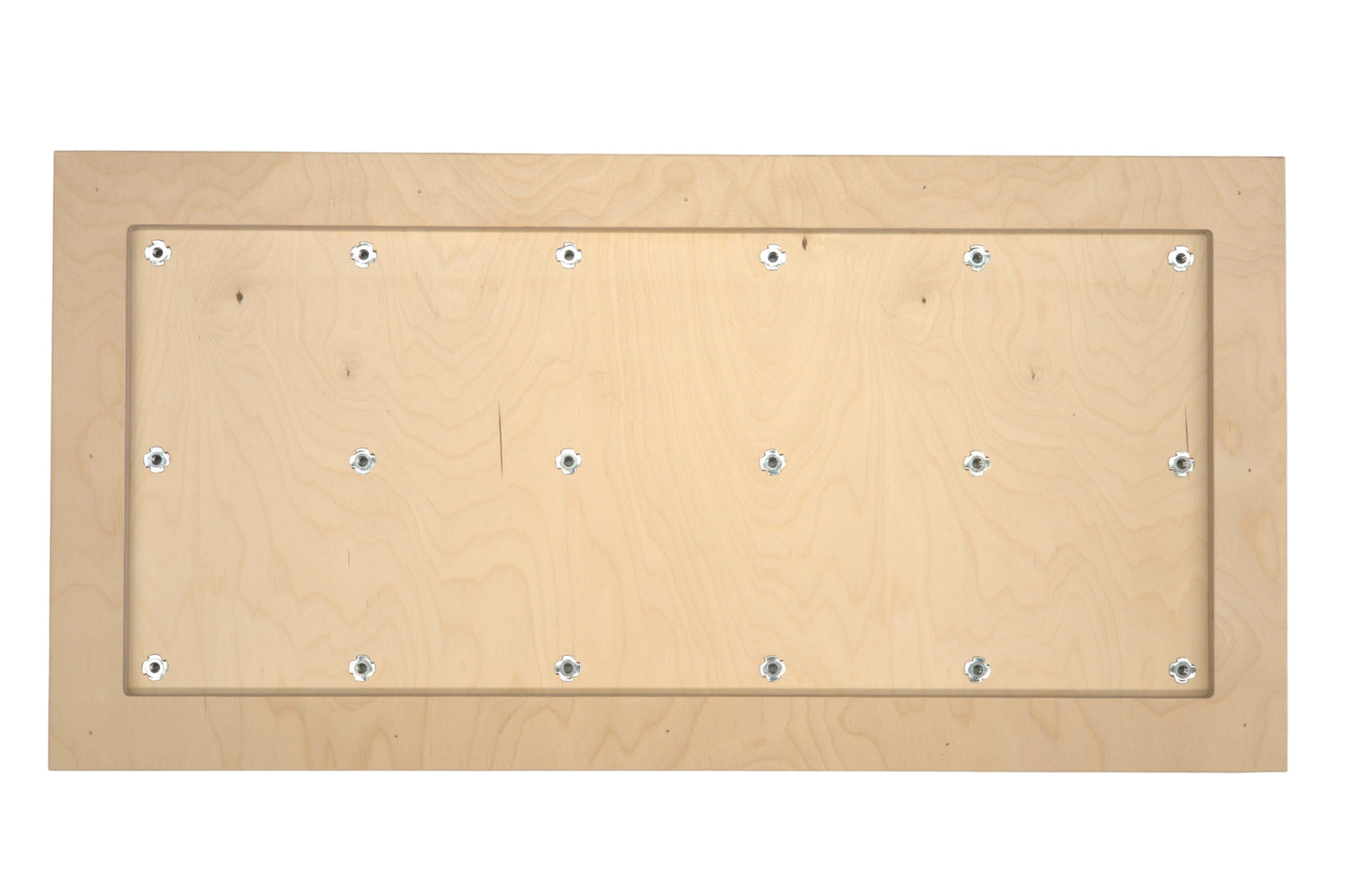

Climbing Panels – Indoor Climbing Walls for Kids (Rectangular)

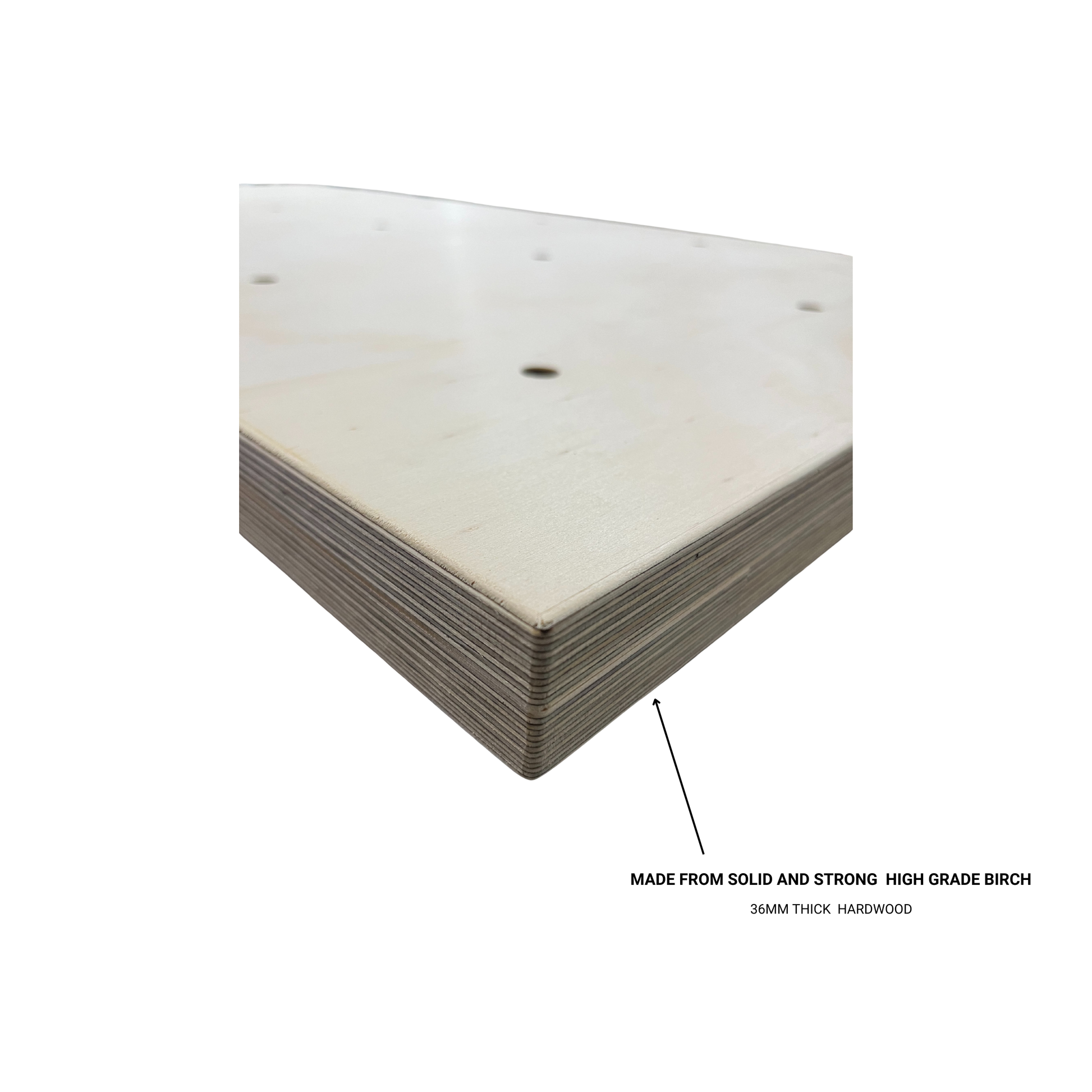

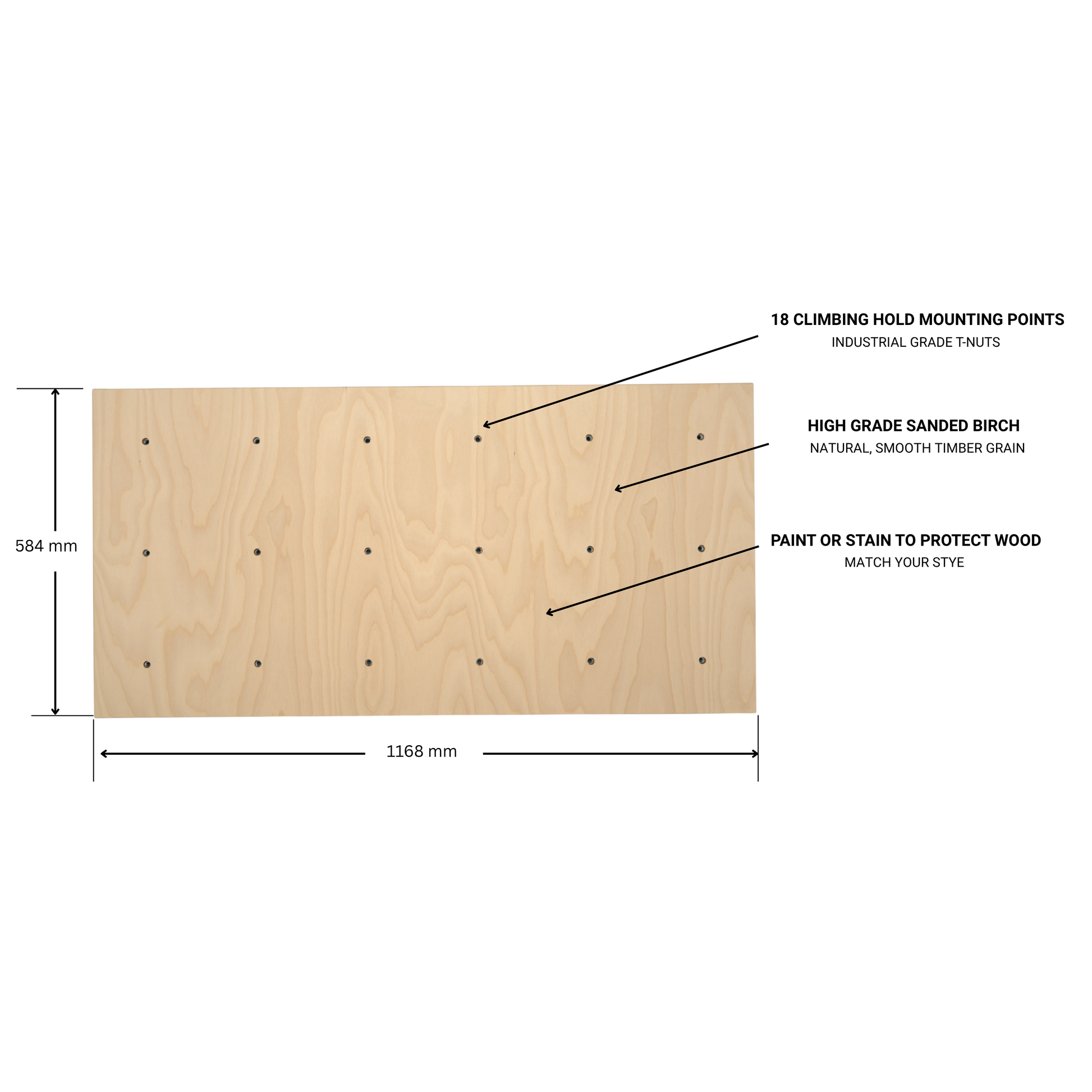

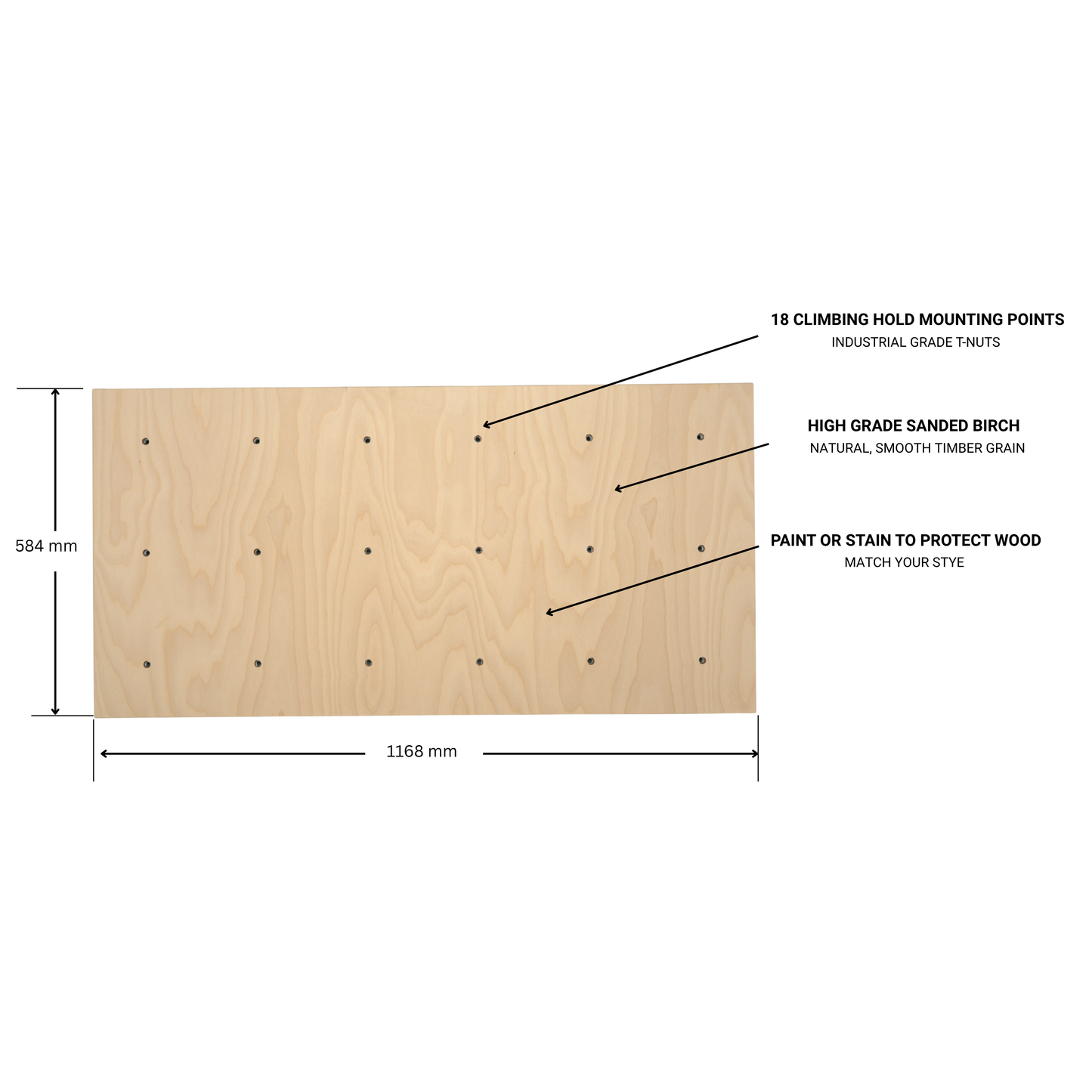

• Dimensions: 1168 × 584 mm - 36mm thick

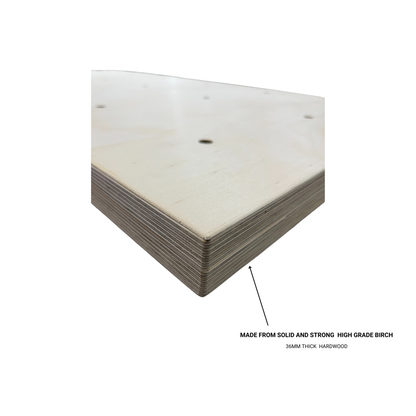

• Material: 18 mm birch plywood (engineer-certified, ±1 mm tolerance)

• Working Load Limit: 70 kg per panel

• Fixing: Each panel requires 2 screws into 2 studs (4 screws total). Use 2 batten screws per panel into timber studs for secure installation.


All Ako climbing panels are designed to be installed into studs/joists and are engineer-certified to AUS/NZ standards for safe indoor climbing walls.

• Panels must be fixed directly into timber wall studs using batten screws — 4 screws per panel in total (2 at the top and 2 at the bottom), fixed into two separate studs.

• Studs must be at least 90 × 45 mm and structurally sound. Position the panels so that screws are placed near the edges for maximum stability.

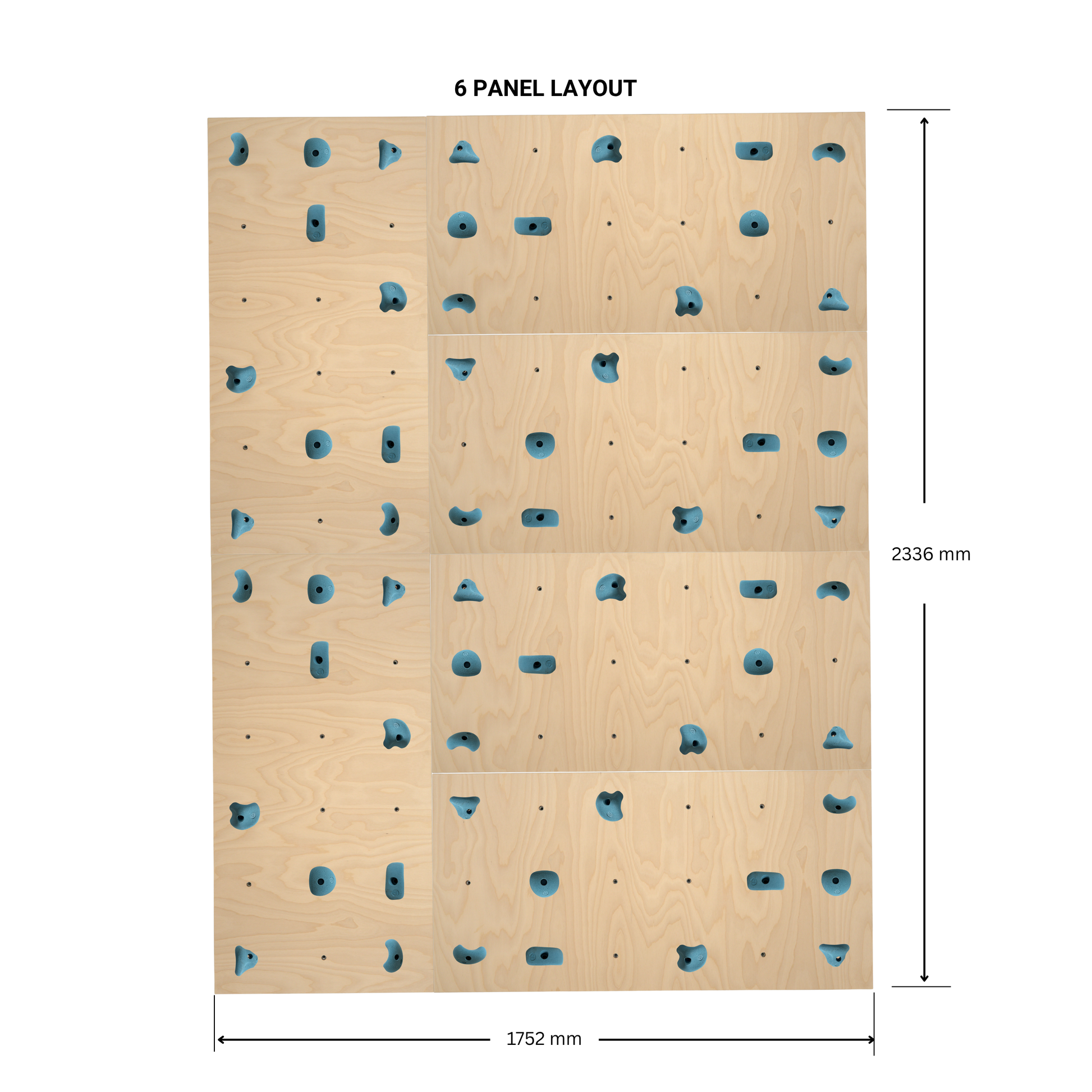

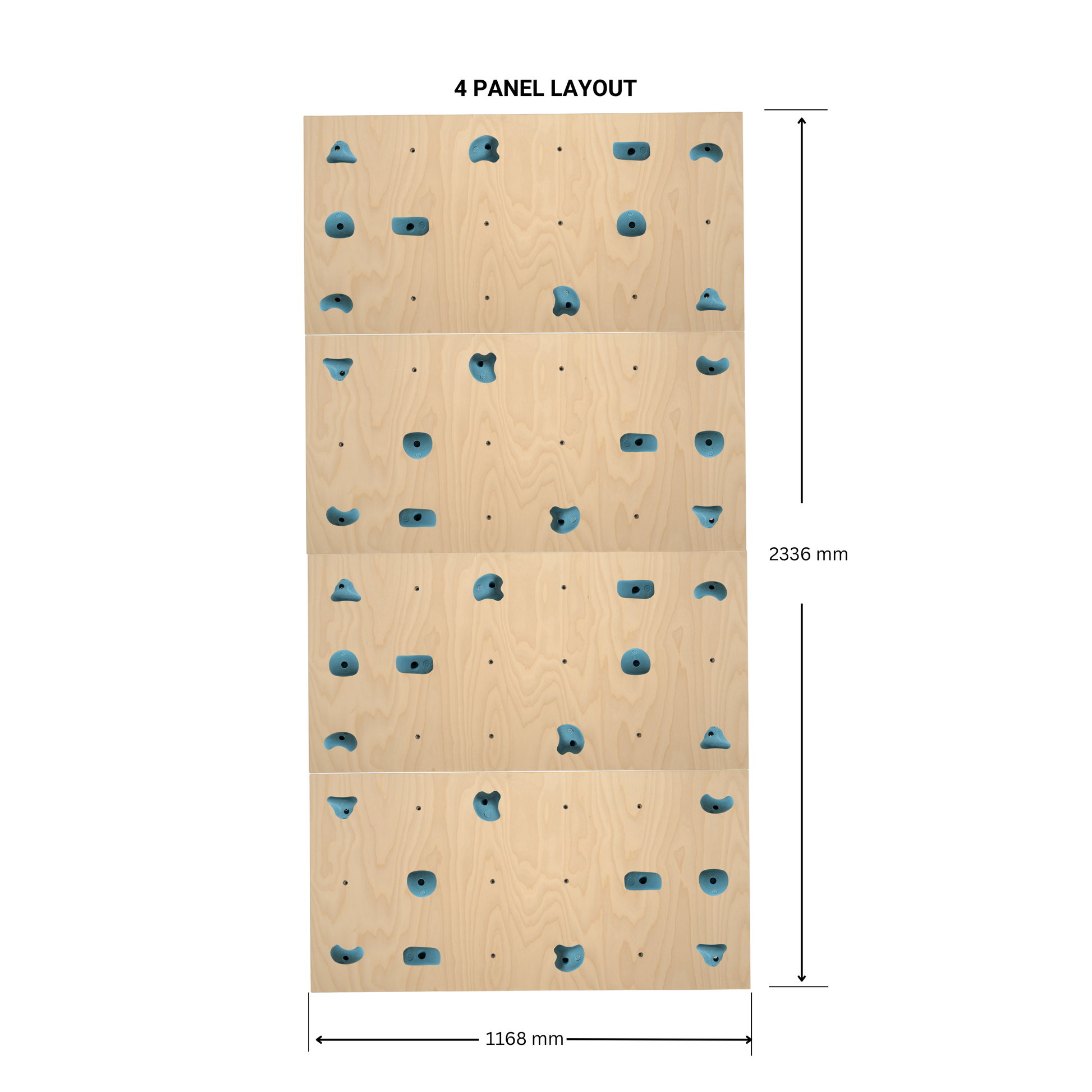

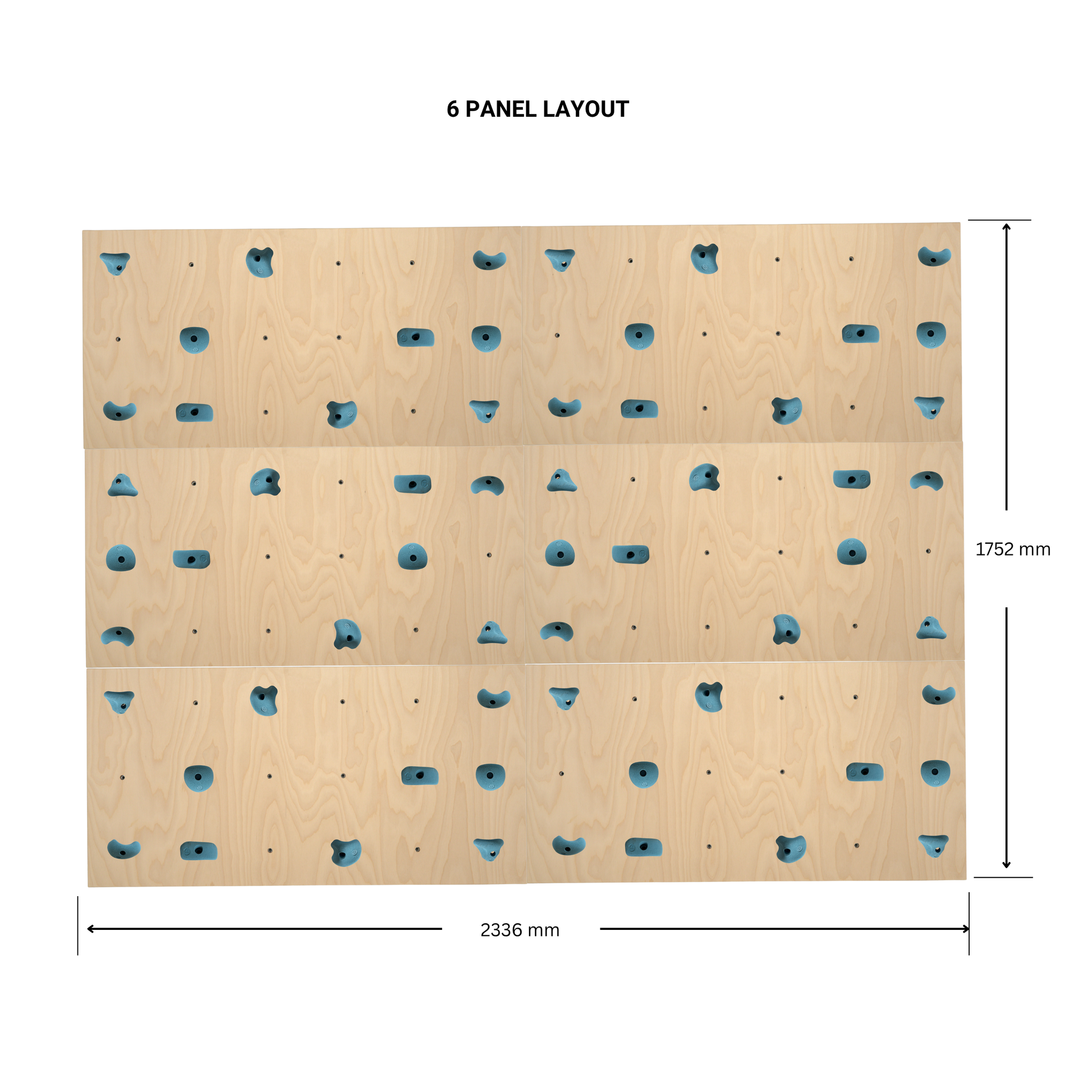

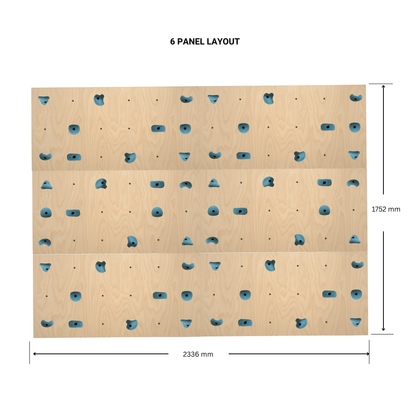

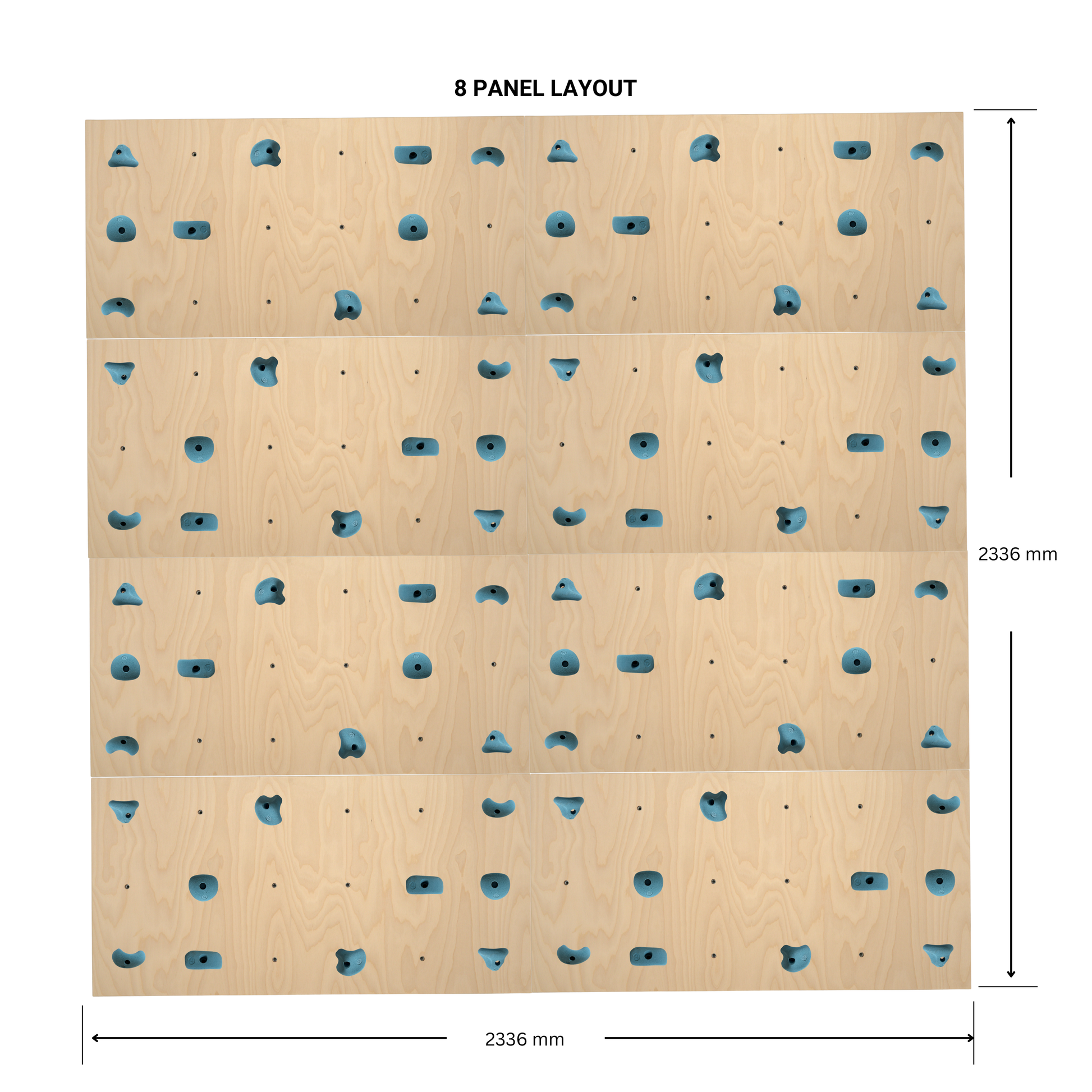

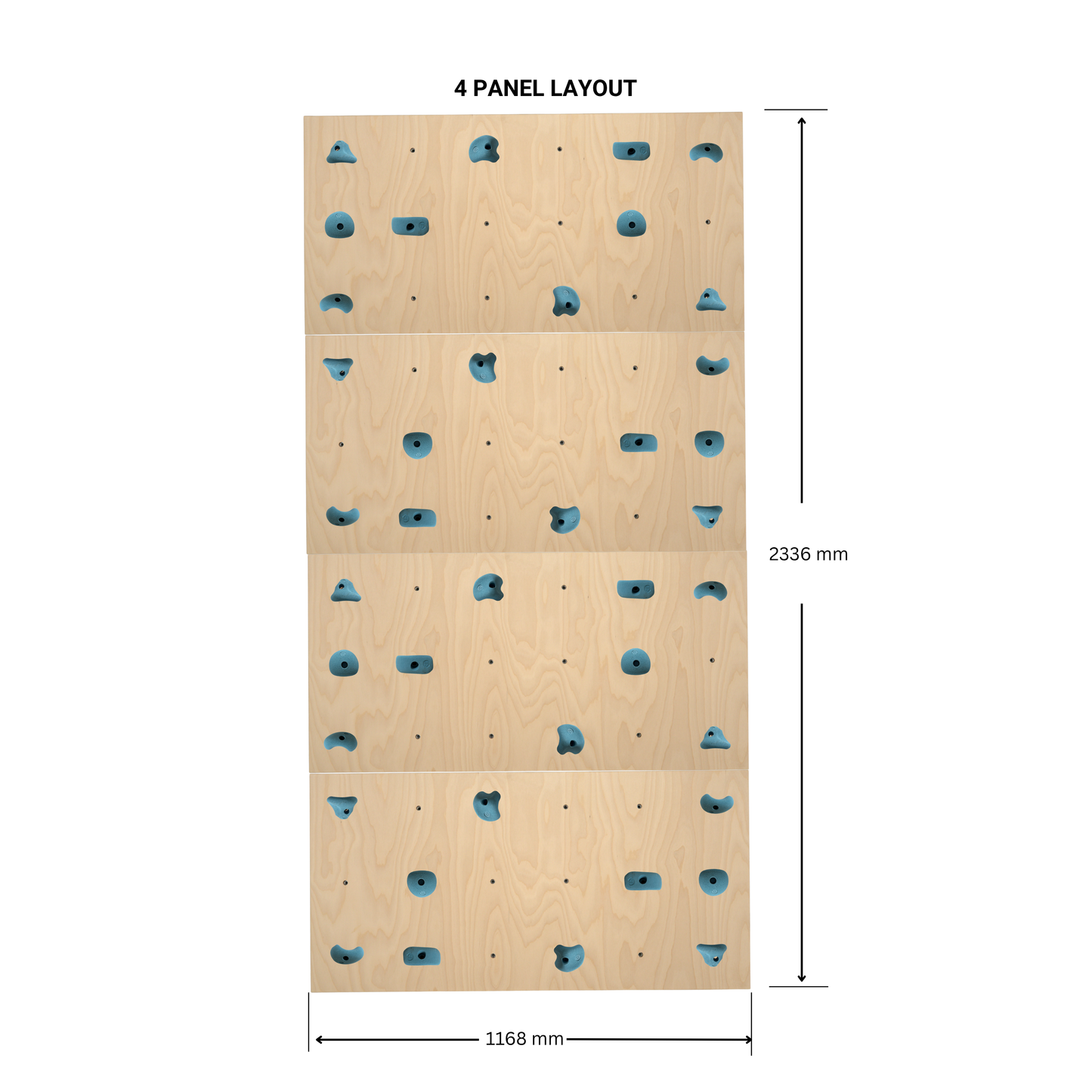

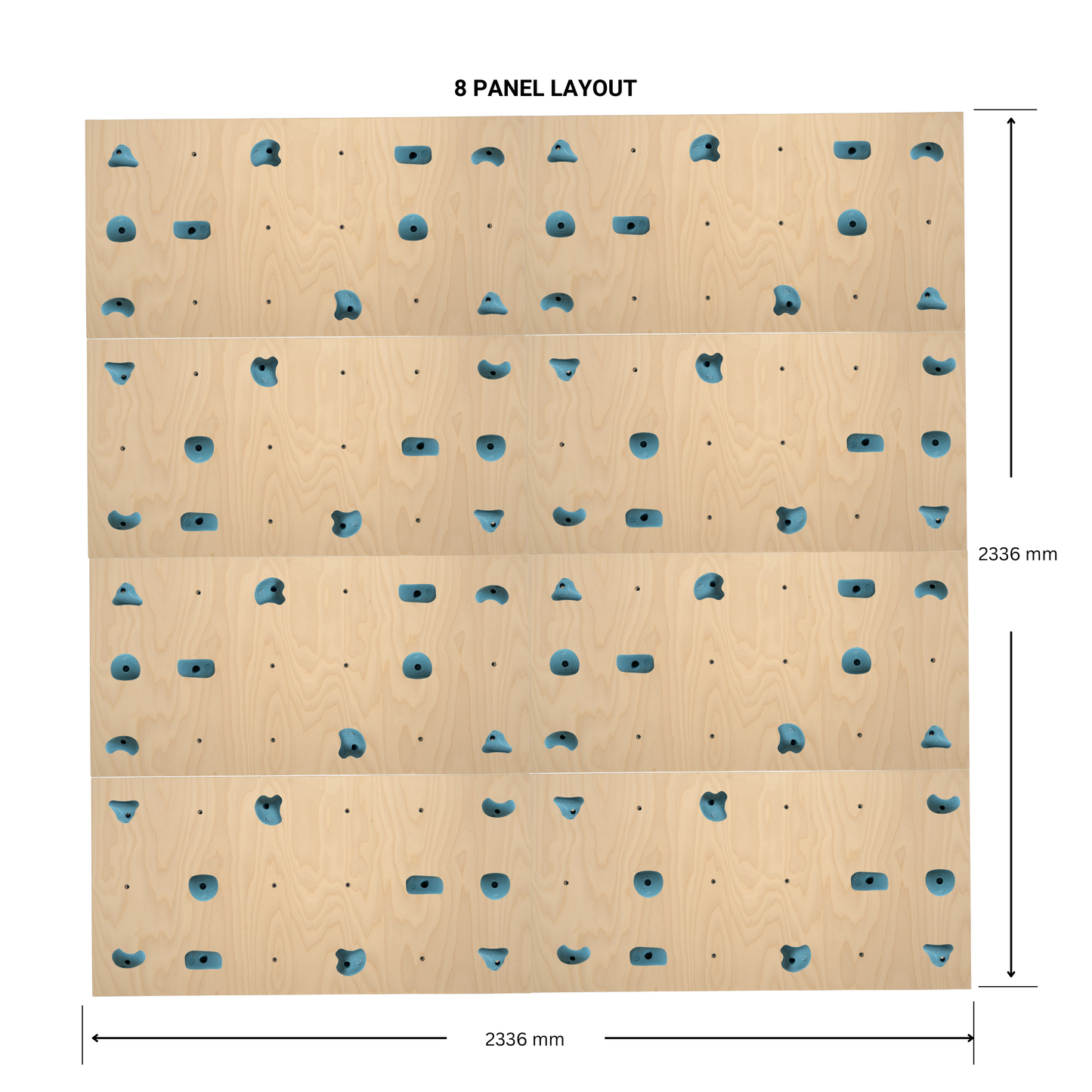

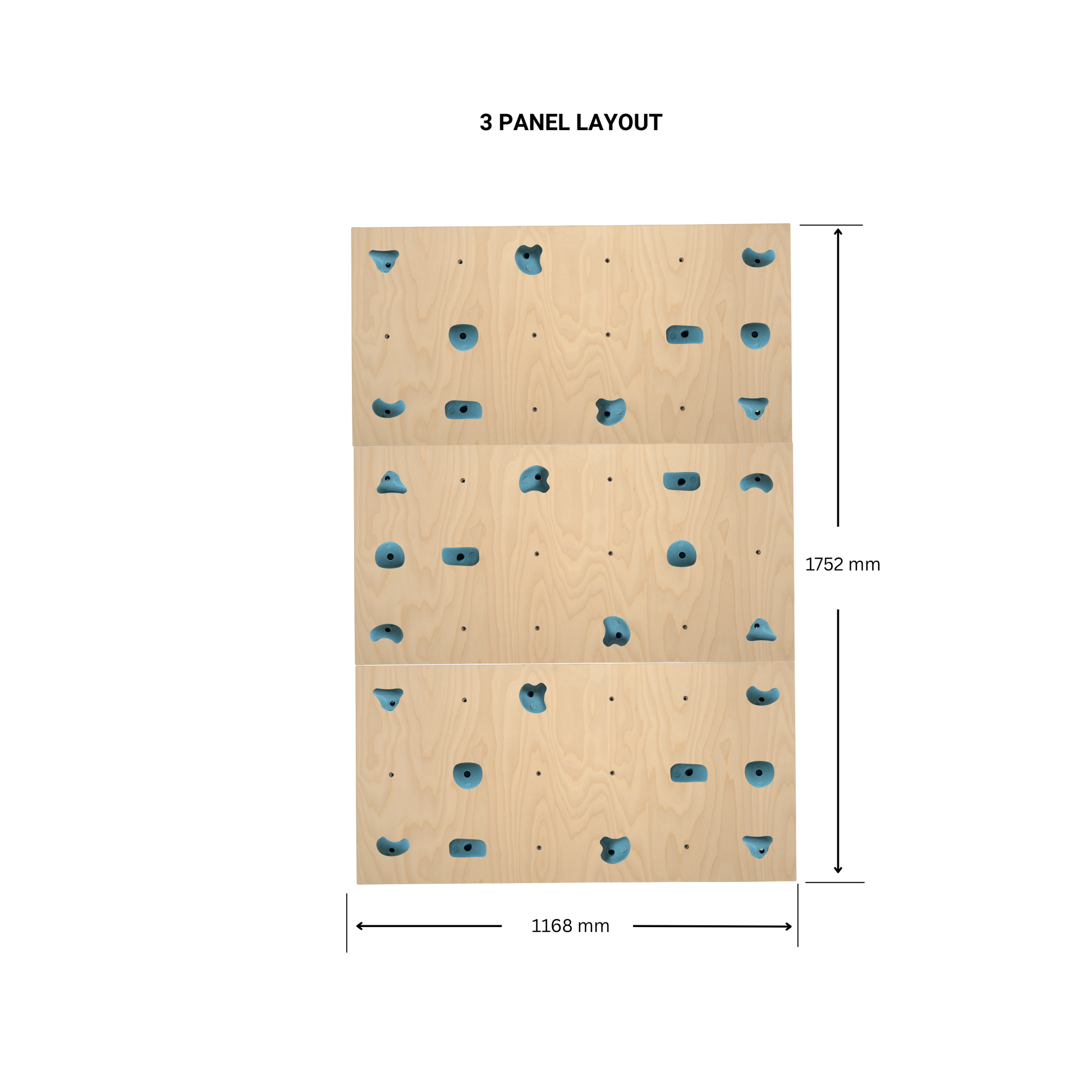

• When stacking panels vertically, ensure each panel is fixed individually with 4 screws into studs as described.

• Install only into timber framing or solid substrates. Installation into plasterboard or unsupported hollow walls is unsafe and strictly not permitted.

• Professional installation is recommended unless you are a confident DIY installer.


View the installation guide.

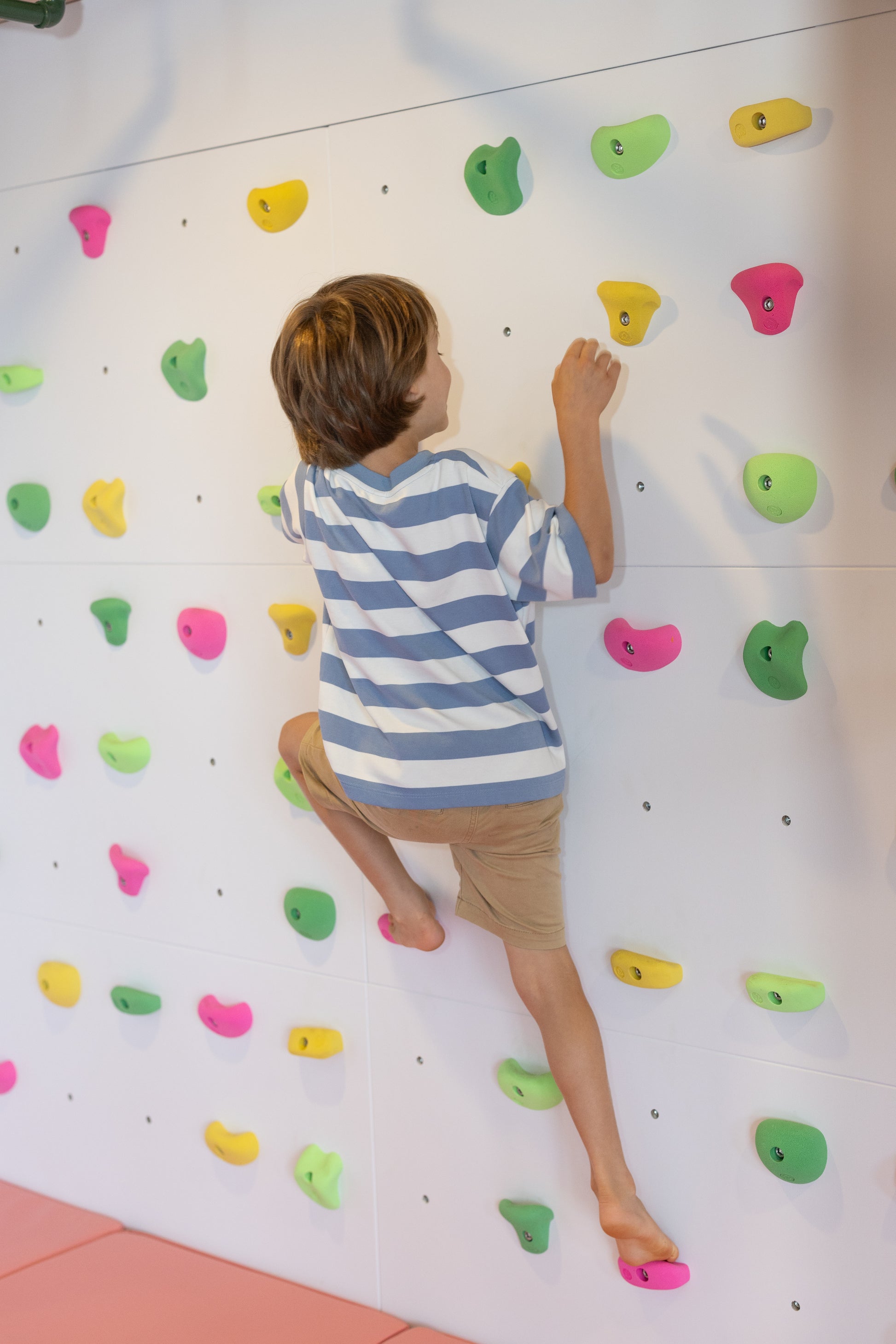

Adult supervision is required at all times when children are climbing.
Inspect regularly — check panels, screws, and holds for wear, loosening, or damage before each use.
Respect load limits — do not exceed the stated maximum of 70 kg per panel.

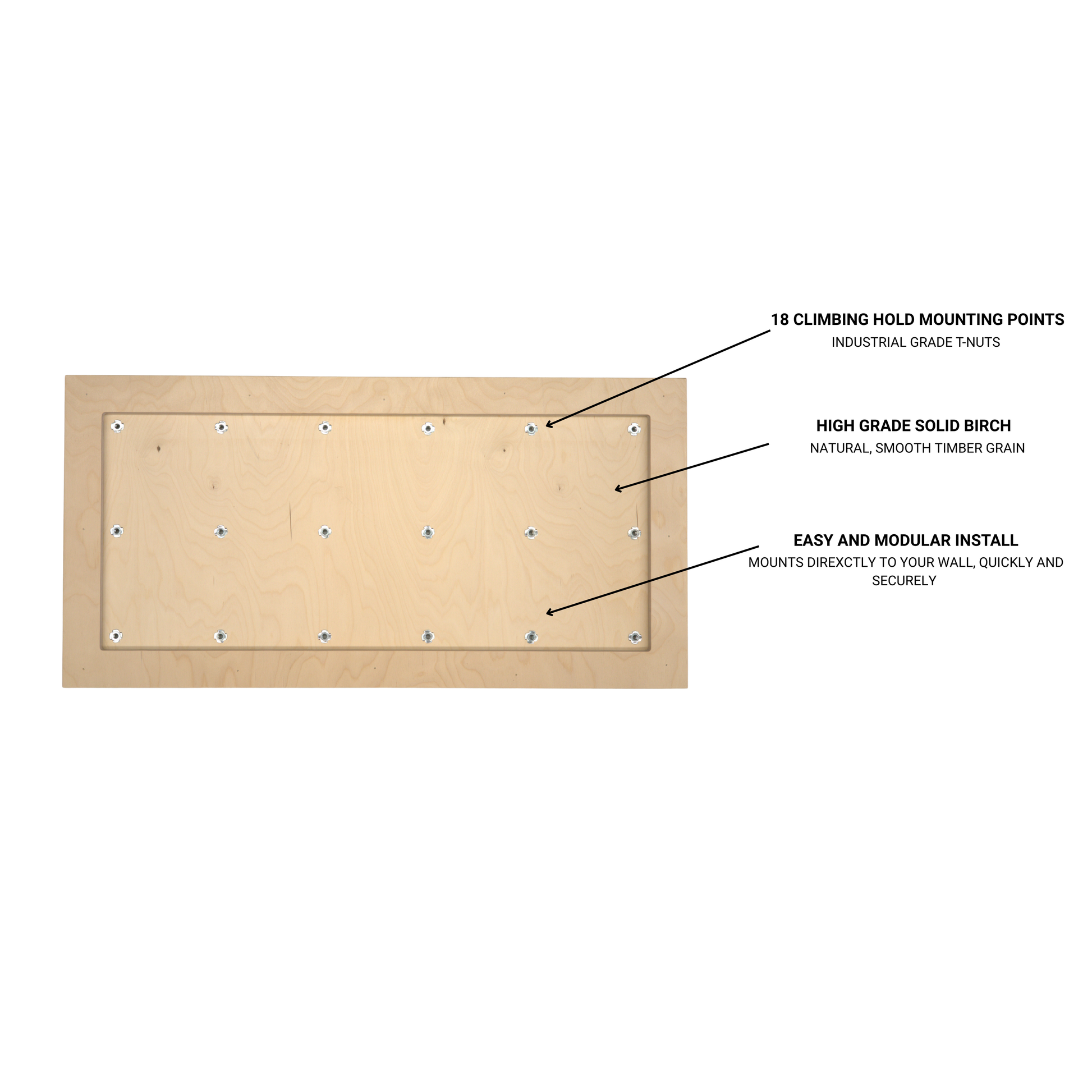

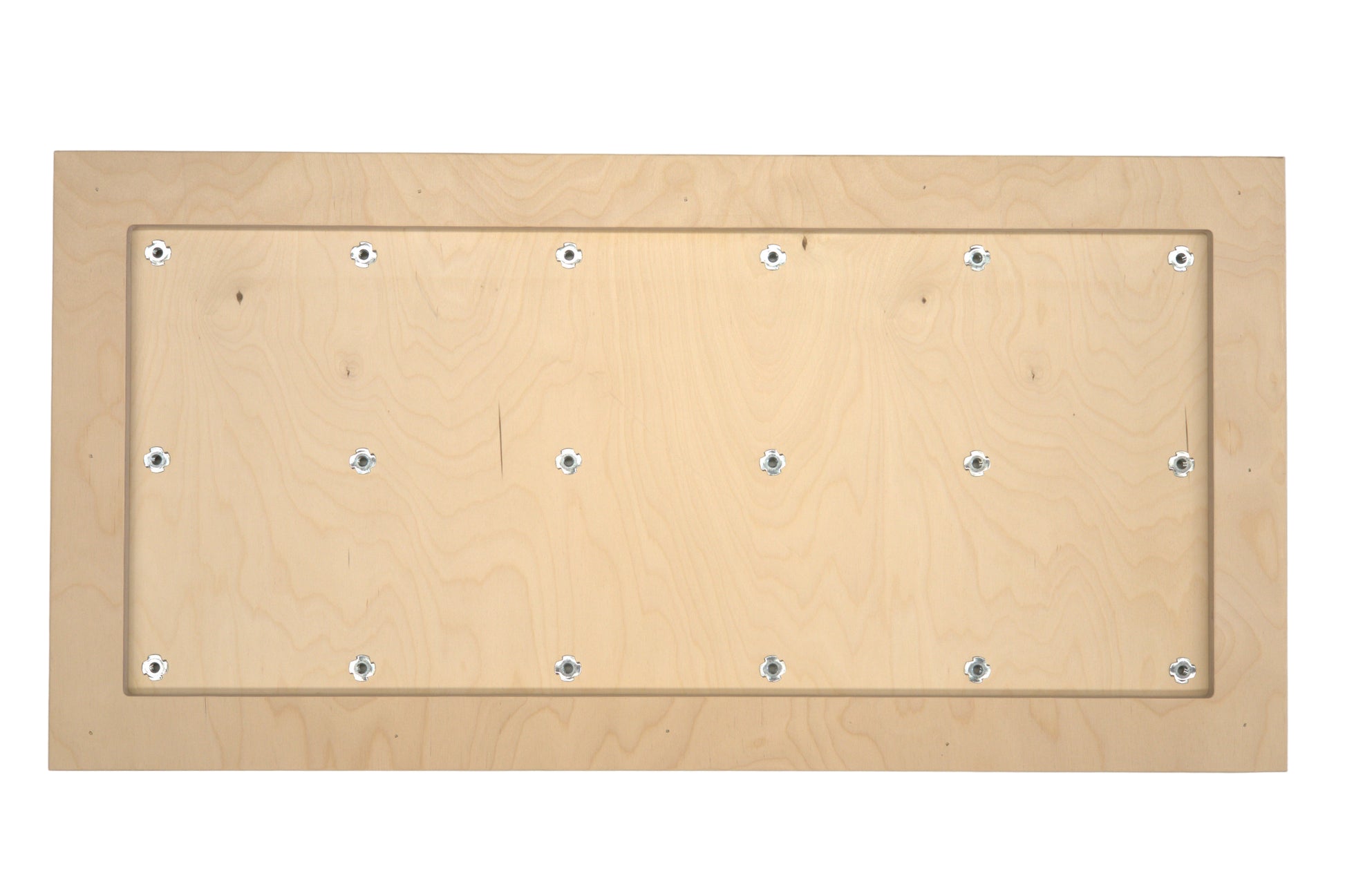

Use only approved climbing holds and fixings compatible with 18–19 mm plywood and installed with M10 T-nuts.

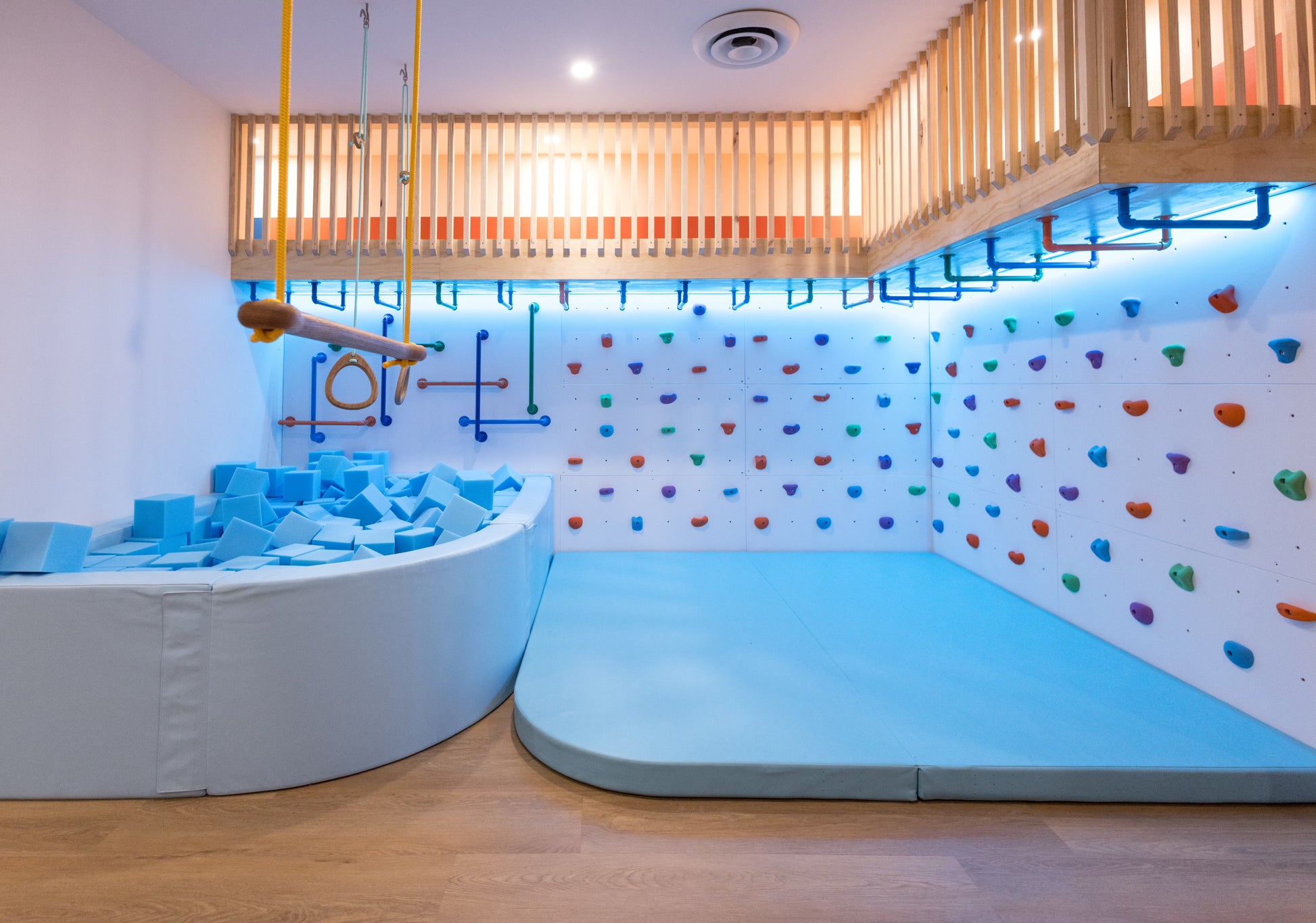

Provide fall protection — ensure adequate safety surfacing (e.g., crash mats) beneath and around all climbing installations.
Maintain properly — retighten holds as needed and replace worn parts immediately.
Liability disclaimer — Ako Playrooms accepts no responsibility for injuries, damage, or failure resulting from incorrect installation, misuse, or failure to follow safety guidelines.

• All products come with a 6-month warranty covering manufacturing defects.

• Photo evidence of any issue will be required before a remedy is offered. Ako Playrooms will determine the appropriate solution, which may include repair or replacement.

• This warranty does not cover:
  1.General wear and tear
  2.Improper use or misuse
  3.Damage caused during self-installation or incorrect installation
  4.Alterations or modifications to the product


• Ako Playrooms reserves the right to assess claims on a case-by-case basis.


See our Warranty Policy for more.

We are currently shipping to New Zealand and Australia. This product is made to order. Ships in 4 to 6 weeks. Ships directly from the manufacturer. Refer to shipping policy.

This product must be installed into a compliant timber framing system by a qualified professional or competent DIY installer.

Panels must be fixed to timber studs no smaller than 90 × 45 mm, using 4 batten screws per panel (2 at the top and 2 at the bottom) across 2 separate studs.

Installation into plasterboard, hollow cavities, or unsupported substrates is strictly prohibited and may result in serious injury or structural failure.

The stated Working Load Limit (WLL) of 70 kg applies only when panels are correctly installed into structurally sound timber framing.

Liability: Ako Playrooms accepts no responsibility for injuries, accidents, or damage resulting from incorrect installation, overloading, misuse, or failure to follow safety instructions.

Regular inspection and maintenance of all fixings and climbing holds is required.

By purchasing or installing this product, you acknowledge and accept full responsibility for safe installation and use.

The use of fall protection (e.g., crash mats) is strongly recommended.
